TS1000 Total Station
PRECISE MEASUREMENT
For angle measurement, the TS1000 can reach 2" accuracy. For distance measurement, the TS1000 total station supports 5mm non-prism accuracy and 2mm single prism accuracy.
FOR BOTH RTK & TOTAL STATION

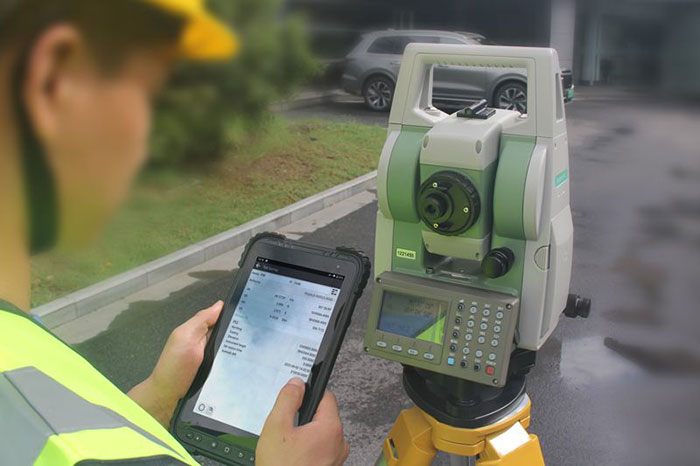

Connected via Bluetooth, the TS1000 can realize easy measurement and data storage in RTK surveying software SingularPad. Both GNSS and optical survey tasks can be performed smoothly under the same project and datum. You can share the real-time stakeout position with prism operators through SingularPad for convenient stakeout.
VERSATILE SURVEYING
Based on SingularPad field surveying software, the point
survey, stakeout, CAD and other functions are all compatible with TS1000
total station, providing brand new experiences for total station users.
LONG NON-PRISM RANGE
The TS1000 total station supports up to 1000m non-prism measurement range. With a single prism, the range can be extended to 7500m in 2mm accuracy.
FLEXIBLE STORAGE
Internal 40,000 points memory, external USB and field
software storage provide e
nough capacity for your various tasks.
EASY-TO-USE DESIGN
The dual-side display and keyboard of TS1000 shows high convenience for your operation and viewing. The built-in red laser plummet allows fast instrument setup in any environment.
LARGE BATTERY
Using a 2.5 Ah Ni-MH battery, the TS1000 can work
continuously for 6 hours for distance and angle measurements, and 20 hours for
angle-only measurements. Upgrade to an optional lithium battery, the working
time can be extended for a longer time.
